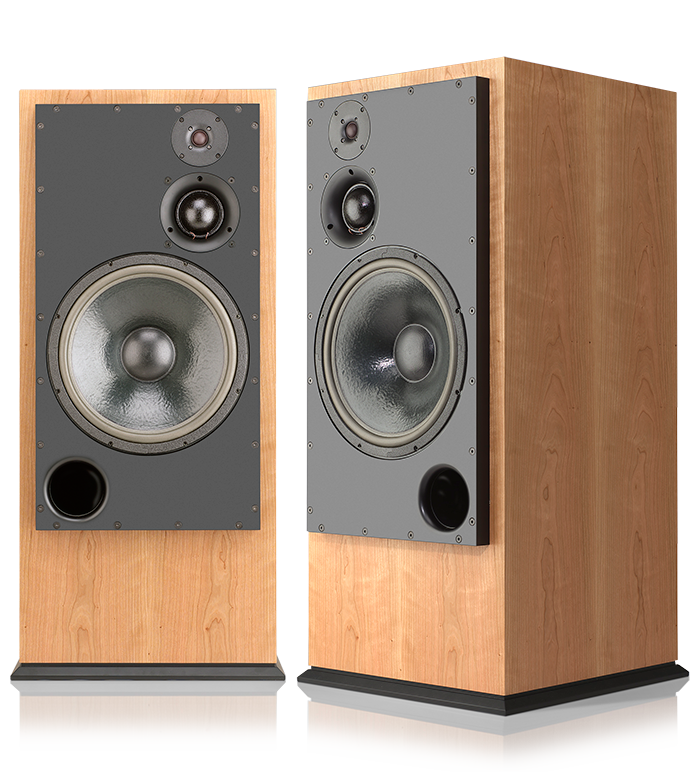

Overview
- ATC SM75-150 S Soft Dome Mid driver
- Latest 375mm SL Spec Bass driver
- Massive ATC motor assembly
- Wide, even dispersion for pin-point imaging
- 350 watt class AB tri-amp pack
- Active filters and overload protection
- 6 year warranty
- Also available in passive version
- Any veneer to order. Featured veneer: Cherry
Specifications
Drivers: HF 25mm Mid 75mm LF 375mm Super Linear
Amplitude Linearity ±2dB: 60Hz – 17kHz
Frequency Response -6dB: 25Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 91dB @ 1W @ 1m
Max continuous SPL @1m: 117dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1104x495x635mm
