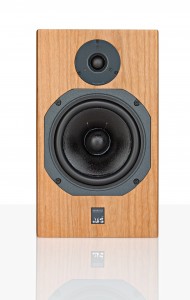

ATC SCM11 Entry Series
Overview
-
New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
- Precision undercut bass pole.
-
125mm ATC mid/bass unit with integral soft dome.
-
In-house, hand-wound precision flat wire coil.
-
Massive optimised motor assembly.
-
Flat impedance curve allowing easy load for amplifiers.
-
6 year warranty.
Specifications
Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD
Matched Response: ±0.5dB
Frequency Response (-6dB): 56Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.2kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 381x232x236mm (grill adds 28mm depth)
Weight: 10.9kg
