Overview
The SCM50 ASL (active) and SCM50 SL (passive) are designed to perform at their best in the recording studio or at home with the finest quality hi-fi equipment.
The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.
Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9″ bass driver incorporates ATC’s unique Super Linear Magnet technology. Our active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.
Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.

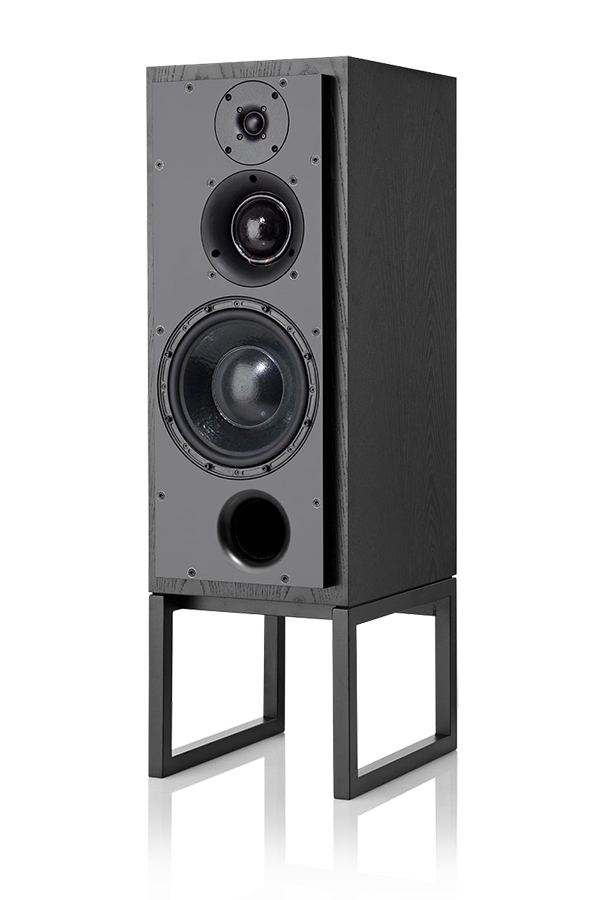

Speakers are supplied with stands and fabric wrapped grills.
Specifications
Drivers: HF 25mm Mid 75mm LF 234mm Super Linear
Amplitude Linearity ±2dB: 70Hz – 20kHz
Frequency Response -6dB: 40Hz & 25kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 85dB @ 1W @ 1m
Max continuous SPL @1m: 112dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms (5.5 ohm minimum)
Accessories Inc. (per pair): 2 x Speaker Stands (as shown), 2 x fabric wrapped grills, 8 x M8 stand spikes and nuts.
Cabinet Dimensions(HxWxD): 717 x 304 x 425mm (stands add 250mm to height)
Weight: 41.1kg
